Page ref: 93
TDI

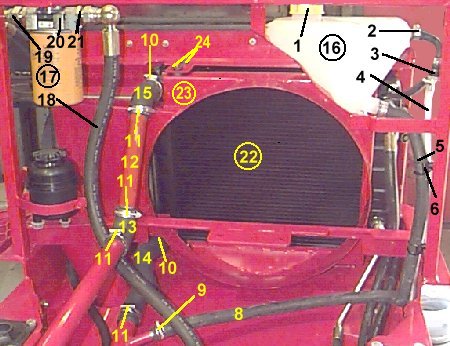

- Cooling system - Radiator hoses
Hydraulic
return line filter / hoses
|
1 |
Header tank cap |
|
|
2 |
Hose clip |
|
|
3 |
Tee piece |
|
|
4 |
Braided hose 8mm |
|
|
5 |
Hose cradle |
|
|
6 |
Cradle clip |
|
|
7 |
|
|
|
8 |
Header tank bottom hose |
|
|
9 |
Hose clip |
|
|
10 |
Hose clip |
|
|
11 |
Hose clip |
|
|
12 |
Tube - radiator top hose |
|
|
13 |
Bottom elbow - radiator top hose |
|
|
14 |
Bottom hose - radiator |
|
|
15 |
Top elbow - radiator top hose |
|
|
16 |
Header tank |
|
|
17 |
Hydraulic return filter |
|
|
18 |
Hose assy - filter/tank |
|
|
19 |
Hose assy - filter/oil cooler |
|
|
20 |
Filter head assy |
|
|
21 |
3/4" adaptor |
a) adaptor |
|
22 |
Radiator assy |
|
|
23 |
Fan cowling |
|
|
24 |
Rubber grommet |
Radiator/cowl mounting |
