FPW brake calliper assembley

Page ref: 11

Heavy duty drive/steer axle

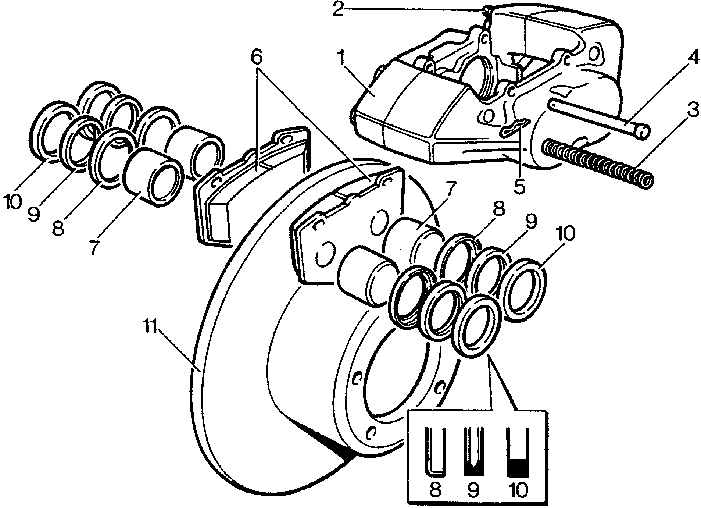

Brake calliper assembley

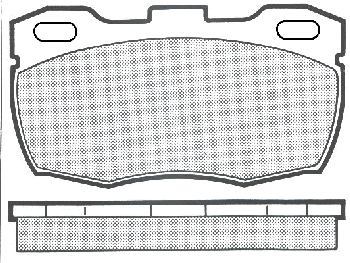

Fpw disk brake pad type a (internal anti-rattle spring)

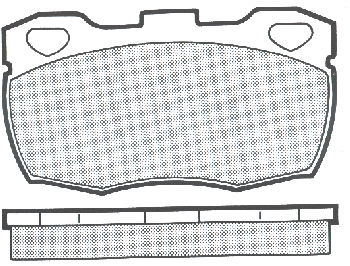

FPW dik brake pad type B (external anti-rattle spring)

Type A with anti-rattle springs over retaining pins

Type B with external anti-rattle springs

No

Description

Qty

Frazier part no

1

Calliper
Right hand
Left hand

1
1

FP-BR-CA-RH
FP-BR-CA-LH

2

Bleedscrew

2

3

Anti-rattle spring

4

4

Pad retaining pin

4

5

Split (cotter) pin

4

6

Brake pad:
Type A
Type B

4
4

FP-BR-DBP

7

Piston

12

8

Wiper seal retainer

8

9

Wiper seal

8

10

Fluid seal

8

11

Brake disc

2

FP-BR-BD


Type A with anti-rattle springs over retaining pins	Type B with external anti-rattle springs

No	Description	Qty	Frazier part no
1	Calliper Right hand Left hand	1 1	FP-BR-CA-RH FP-BR-CA-LH
2	Bleedscrew	2
3	Anti-rattle spring	4
4	Pad retaining pin	4
5	Split (cotter) pin	4
6	Brake pad: Type A Type B	4 4	FP-BR-DBP
7	Piston	12
8	Wiper seal retainer	8
9	Wiper seal	8
10	Fluid seal	8
11	Brake disc	2	FP-BR-BD
