Page ref: 75

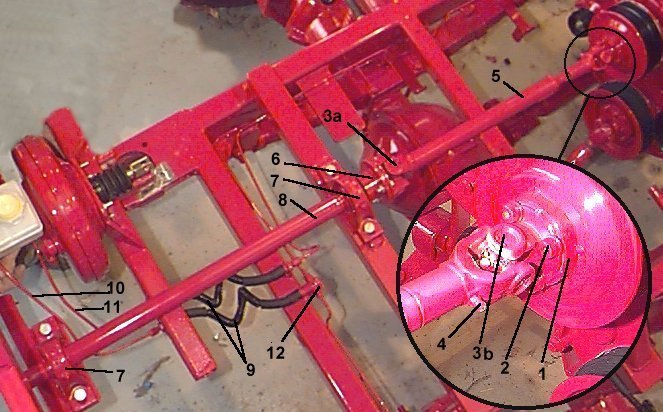

TDI
- Cooling fan drive shaft
Brake
hoses - servo/chassis (Phantom/Stealth)
|
1 |
Fan shaft drive hub |
|
|
2 |
Cap screw |
|
|
3 |
Fan shaft universal joint |
a) Large |
|
4 |
Grease nipple |
|
|
5 |
Drive shaft rear |
|
|
6 |
Shaft flange front |
|
|
7 |
Bearing assy |
|
|
8 |
Shaft front |
|
|
9 |
Flexible brake hose |
|
|
10 |
Brake pipe assy |
|
|
11 |
Brake pipe assy |
|
|
12 |
Brake pipe tee |
|
