Page ref: 65

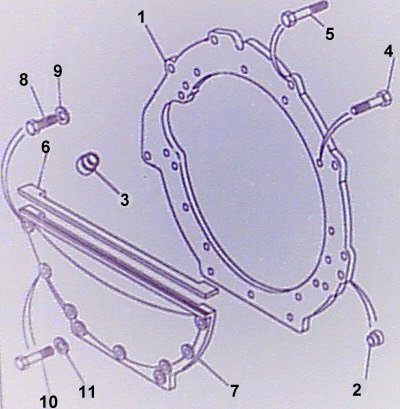

TDI auto transmission - Gearbox adaptor plate
|
1 |
Adaptor plate |
|
|
2 |
Dowl plate/case |
|
|
3 |
Dowl plate/engine |
|
|
4 |
Bolt |
|
|
5 |
Bolt |
|
|
6 |
Seal |
|
|
7 |
Cover |
|
|
8 |
Screw |
|
|
9 |
Washer |
|
|
10 |
Bolt |
|
|
11 |
Washer |
|
