Page ref: 56

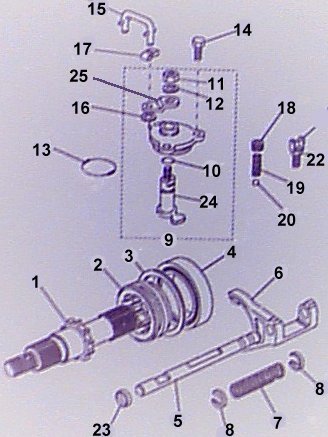

TDI auto transmission - Transfer gearbox front output shaft
|
1 |
Front output shaft |
|
|
2 |
Dog clutch - front drive |
|
|
3 |
Shims |
Various 2.00 - 3.25mm |
|
4 |
Taper bearing |
|
|
5 |
Selector shaft |
|
|
6 |
Selector fork |
|
|
7 |
Diff lock spring |
|
|
8 |
Clip |
|
|
9 |
Housing assy |
|
|
10 |
O ring |
|
|
11 |
Nut |
|
|
12 |
Washer |
|
|
13 |
O ring |
|
|
14 |
Bolt |
|
|
15 |
Connecting link |
Not used in Frazier installation |
|
16 |
Washer |
|
|
17 |
Spring clip |
|
|
18 |
Plug indent |
|
|
19 |
Detent spring |
|
|
20 |
Detent ball |
|
|
21 |
Switch - diff lock |
|
|
22 |
Lock nut |
|
|
23 |
Plug |
|
|
24 |
Pivot shaft |
|
|
25 |
Lever |
Frazier |
