Page ref: 151

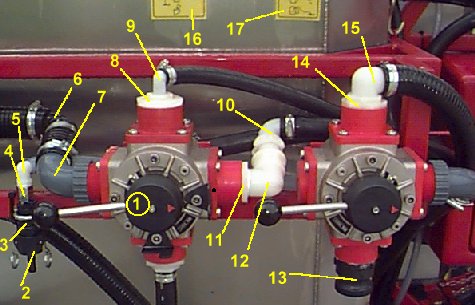

Main control valves
|
1 |
Polmac valve assy |
|
|
2 |
Hose adaptor QR Fem |
|
|
3 |
Cam lock male |
|
|
4 |
Ball valve |
|
|
5 |
Elbow |
|
|
6 |
Elbow |
|
|
7 |
Cap/liner/seal |
|
|
8 |
Reducing bush |
|
|
9 |
Hosetail |
|
|
10 |
Cap/liner/seal |
|
|
11 |
Reducing bush |
|
|
12 |
Elbow |
|
|
13 |
Cam lock adaptor male 2" |
|
|
14 |
Reducing bush |
|
|
15 |
Hosetail 90 deg |
|
|
16 |
Decal - pressure |
|
|
17 |
Decal - suction |
|
